Drivers



LED 40W DIMMABLE DRIVER

  • Tested to ANSI/UL 60950-1, CAN/CSA C22.2 No. 60950-1-03* and EN 60950-1

  • Patented Short Circuit and Overload Protection

  • Ltd power source output allows for Class 2 wiring

  • Multiple Input Voltages 120V, 240V, and 277V, 50/60 Hz.

  • Output adjustable for 24VDC max 40W

  • Dimmable with standard dimmers

  • No external fusing required

  • Tested to handle short circuits of over 15 days

  • Transformer protected against the elements

  • ETL certified for North America and CE for Europe

LED 60W DIMMABLE DRIVER

  • Tested to ANSI/UL 60950-1, CAN/CSA C22.2 No. 60950-1-03* and EN 60950-1

  • Patented Short Circuit and Overload Protection

  • Ltd power source output allows for Class 2 wiring

  • Multiple Input Voltages 120V, 240V, and 277V, 50/60 Hz.

  • Output adjustable for 12VDC or 24VDC max 60W

  • Dimmable with standard dimmers

  • No external fusing required

  • Tested to handle short circuits of over 15 days

  • Transformer protected against the elements

  • ETL certified for North America and CE for Europe

LED 100W DIMMABLE DRIVER

  • Max load 100W

  • Transformer itself enclosed in the enclosure

  • Input leads are 20AWG • Output leads are 12 AWG (12V) & 16 AWG (24V)

  • Lead insulation is 221º F • Transformer uses Class B 266º F insulation

  • Enclosure temperature does not exceed 158º F @ 104º F ambient temperature

  • 2 knockouts for 3/4” screw cable connectors

  • Enclosure is black powder coated

  • Has manual reset thermal circuit breaker on secondary side

  • Can be controlled with a low-voltage dimmer

  • ETL Listed

LED 150W DIMMABLE DRIVER

  • Max load 150W

  • Transformer itself enclosed in the enclosure

  • Input leads are are 20AWG (12V) & 18AWG (24V)

  • Output leads are 12 AWG

  • Lead insulation is 221º F • Transformer uses Class B 266º F insulation

  • Enclosure temperature does not exceed 158º F @ 104º F ambient temperature

  • 2 knockouts for 3/4” screw cable connectors (4 knockouts 24V).

  • Enclosure is black powder coated

  • Has manual reset thermal circuit breaker on secondary side

  • Can be controlled with a low-voltage dimmer

  • ETL Listed

LED 200W DIMMABLE DRIVER

  • Max load 200W

  • Transformer itself enclosed in the enclosure

  • Input leads are are 20AWG (12V) & 18AWG (24V)

  • Output leads are 12 AWG

  • Lead insulation is 221º F • Transformer uses Class B 266º F insulation

  • Enclosure temperature does not exceed 158º F @ 104º F ambient temperature

  • 2 bottom knockouts for 3/4” screw cable connectors.

  • Enclosure is black powder coated

  • Has manual reset thermal circuit breaker on secondary side

  • Can be controlled with a low-voltage dimmer

  • ETL Listed

LED 300W DIMMABLE DRIVER

  • Max load 300W

  • Transformer itself enclosed in the enclosure

  • Input leads are are 18AWG

  • Output leads are 12 AWG

  • Lead insulation is 221º F • Transformer uses Class B 266º F insulation

  • Enclosure temperature does not exceed 158º F @ 104º F ambient temperature

  • 4 knockouts for 3/4” screw cable connectors

  • Enclosure is black powder coated

  • Has manual reset thermal circuit breaker on secondary side

  • Can be controlled with a low-voltage dimmer

  • ETL Listed

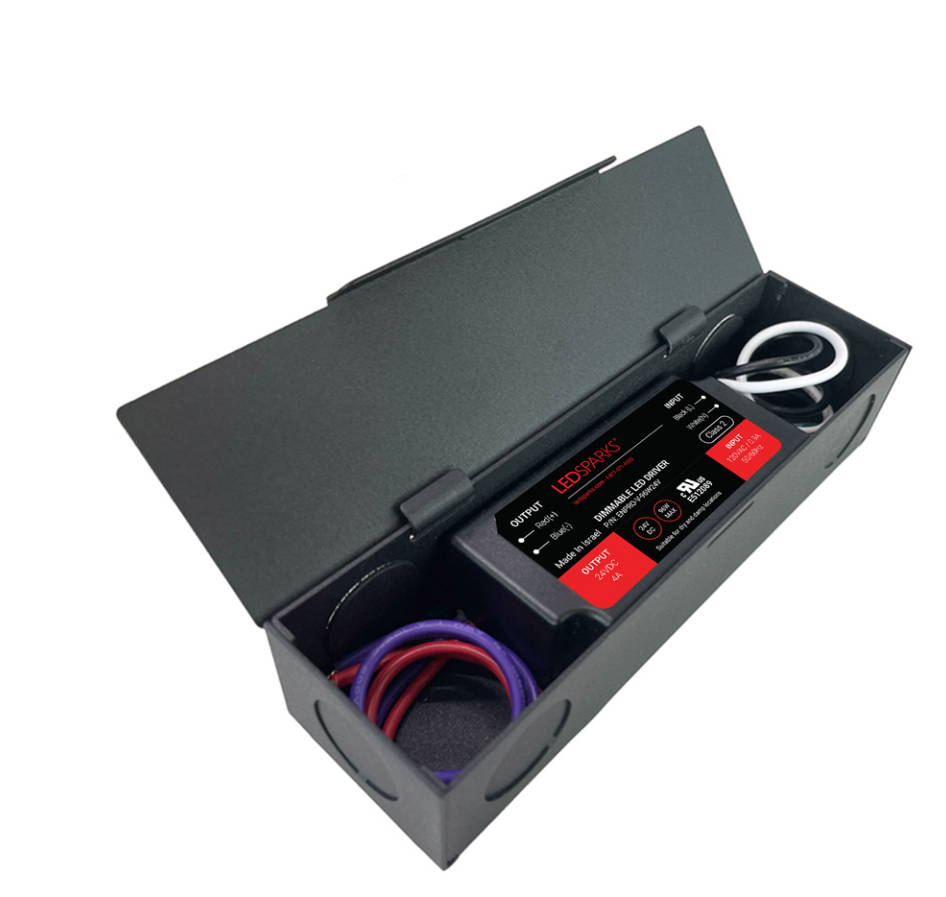

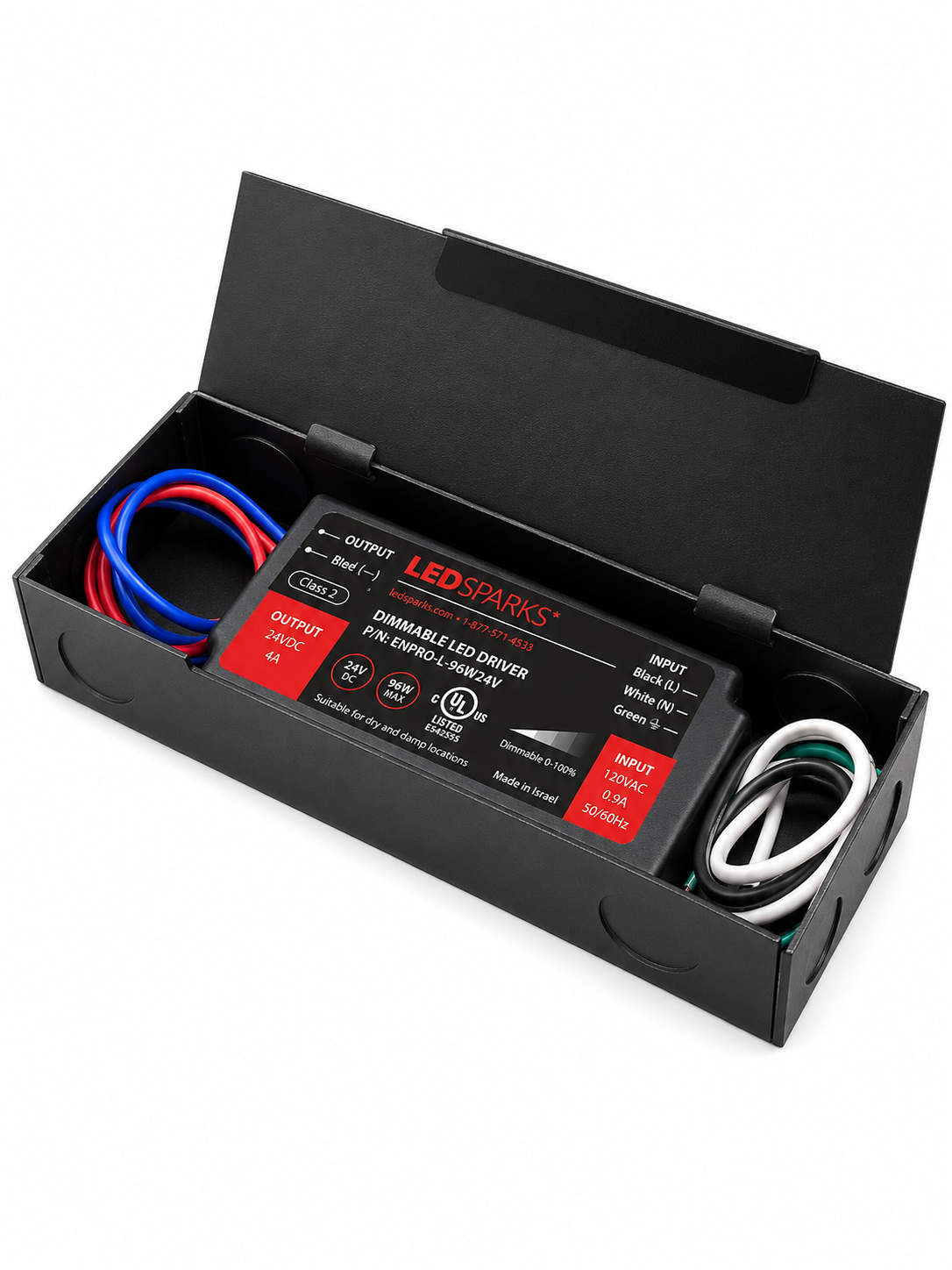

LED CLASS 2 96W DIMMABLE DRIVER

  • The smallest dimmable LED driver in the market

  • Built-in junction box

  • UL Listed - Class 2

  • Dimmable with any Triac/ELV dimmer switch

  • Dim down to 1%

  • Overload and short circuits auto-reset protection

  • 88% Efficency @ Full Load

  • Up to 96W

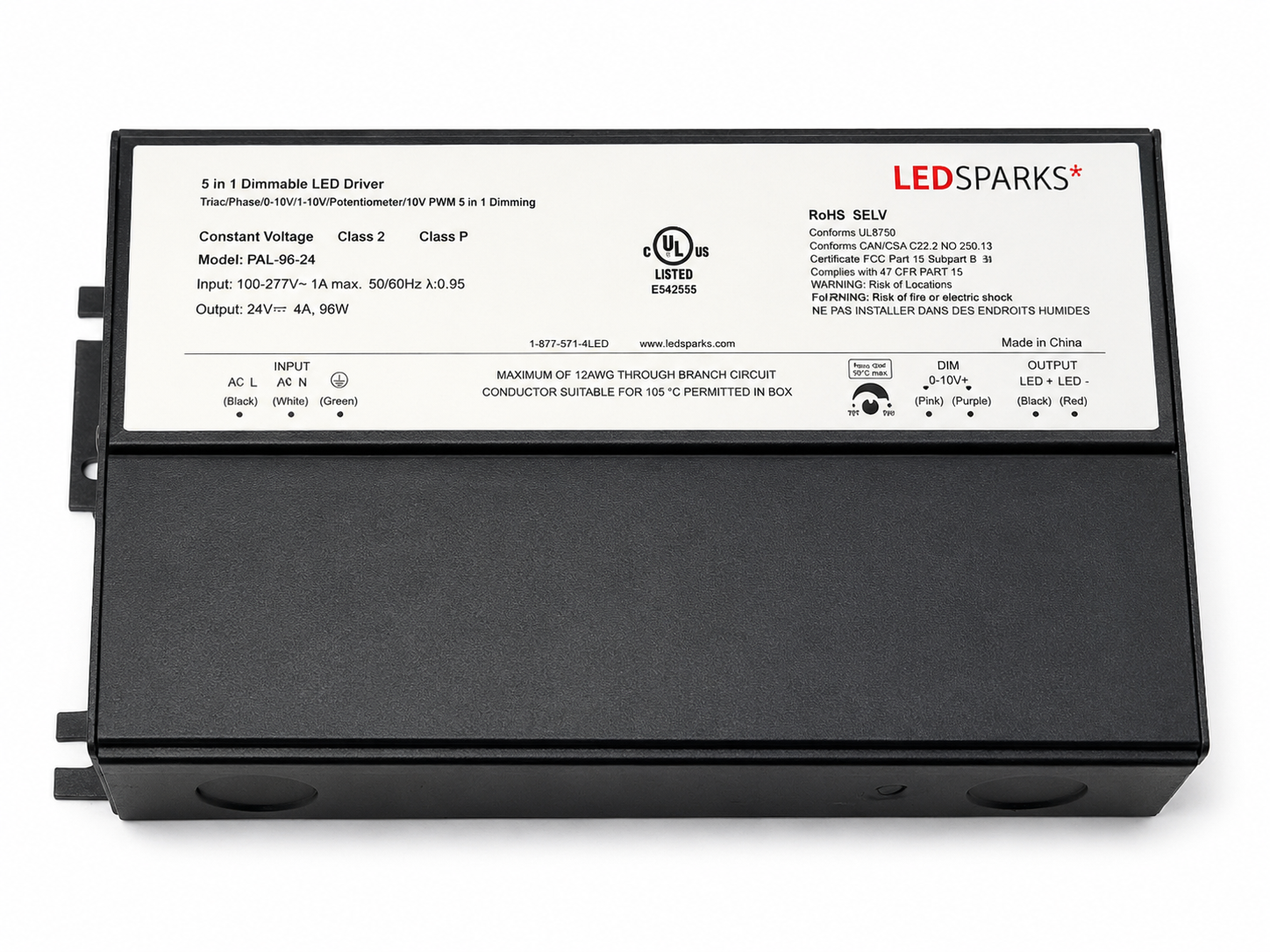

UNIVERSAL DIM 96W LED DRIVER

  • Output 24VDC - 96W Max load

  • Input 100-277VAC - 47-63Hz Frequency range

  • Short circuit / Overload / Over temperature protections

  • Universal Dimming (Forward phase/MLV/Reverse phase/ELV/Triac/0-10V)

  • Up to 89% efficiency

  • Suitable for LED lighting and moving sign applications

  • Built-in Junction box, for dry, damp and wet locations

  • Cooling by free air convection

  • UL Listed - Class 2

UNIVERSAL DIM 200W LED DRIVER

  • Output 24VDC - 200W Max load

  • Input 100-277VAC - 47-63Hz Frequency range

  • Short circuit / Overload / Over temperature protections

  • Universal Dimming (Forward phase/MLV/Reverse phase/ELV/Triac/0-10V)

  • Up to 89% efficiency

  • Suitable for LED lighting and moving sign applications

  • Built-in Junction box, for dry, damp and wet locations

  • Cooling by free air convection

  • UL Listed - Class 2

UNIVERSAL DIM 300W LED DRIVER

  • Output 24VDC - 300W Max load

  • Input 100-277VAC - 47-63Hz Frequency range

  • Short circuit / Overload / Over temperature protections

  • Universal Dimming (Forward phase/MLV/Reverse phase/ELV/Triac/0-10V)

  • Up to 89% efficiency

  • Suitable for LED lighting and moving sign applications

  • Built-in Junction box, for dry, damp and wet locations

  • Cooling by free air convection

  • UL Listed - Class 2

UNIVERSAL DIM 500W LED DRIVER

  • Output 24VDC - 500W Max load

  • Input 100-277VAC - 47-63Hz Frequency range

  • Short circuit / Overload / Over temperature protections

  • Universal Dimming (Forward phase/MLV/Reverse phase/ELV/Triac/0-10V)

  • Up to 89% efficiency

  • Suitable for LED lighting and moving sign applications

  • Built-in Junction box, for dry, damp and wet locations

  • Cooling by free air convection

  • UL Listed - Class 2

UNIVERSAL DIM 600W LED DRIVER

  • Output 24VDC - 600W Max load

  • Input 100-277VAC - 47-63Hz Frequency range

  • Short circuit / Overload / Over temperature protections

  • Universal Dimming (Forward phase/MLV/Reverse phase/ELV/Triac/0-10V)

  • Up to 89% efficiency

  • Suitable for LED lighting and moving sign applications

  • Built-in Junction box, for dry, damp and wet locations

  • Cooling by free air convection

  • UL Listed - Class 2
